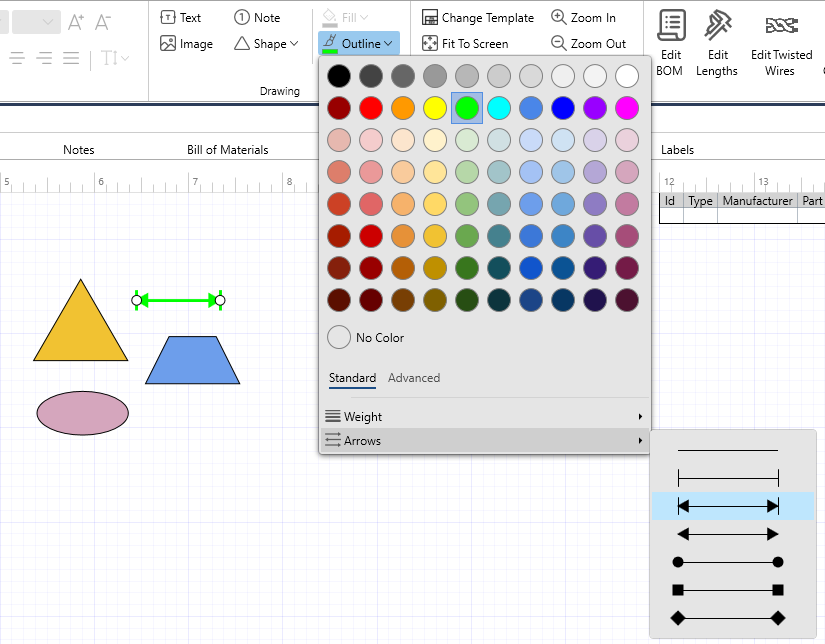

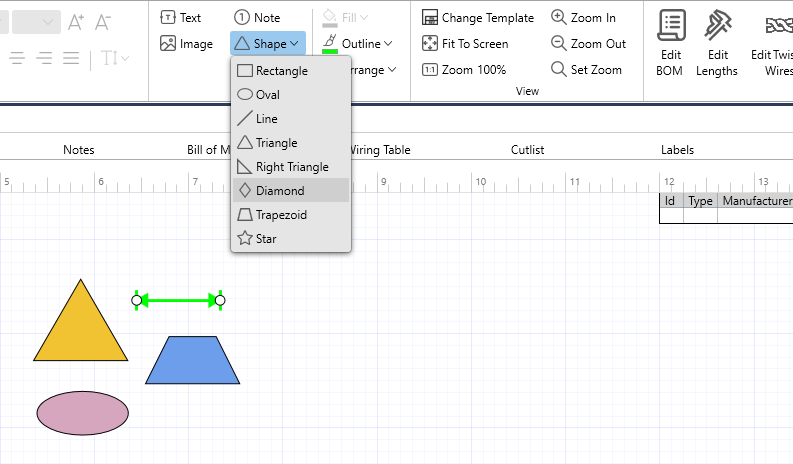

Generic Shapes

You can now add customizable shapes to your Top Level drawings! Enhance your schematics with final build details using shapes with adjustable fill and outline options. When editing a line, you can hold the Shift key to constrain it to a perfectly horizontal or vertical orientation.

Access via: Shapes dropdown in the Drawing section of the application Ribbon.

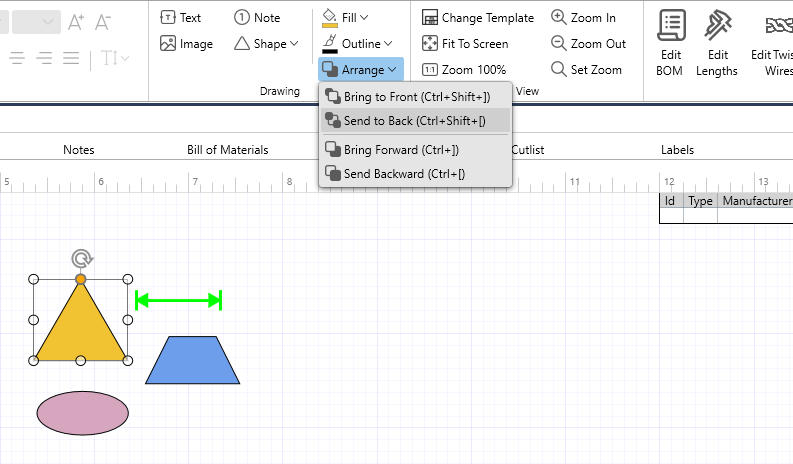

Arrange Images, Texts, Shapes

You can now control the Z-Order of images, text, and shapes to organize your drawings with ease. Move items forward or backward, or even behind your entire harness drawing.

Access via: Arrange menu in the Drawing section of the Ribbon.

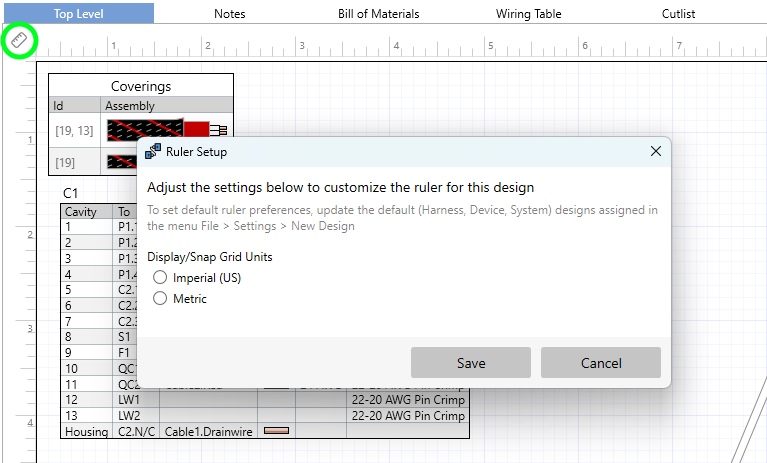

Metric Ruler

You can now switch your ruler and snap grid to metric units as needed by your applicaiton.

Access via: Click the ruler icon in the top-left corner of your drawing.

This setting can also be saved in any default Harness/System/Device designs so new drawings will default to this preference. You can see more on this topic under the File > Settings menu.

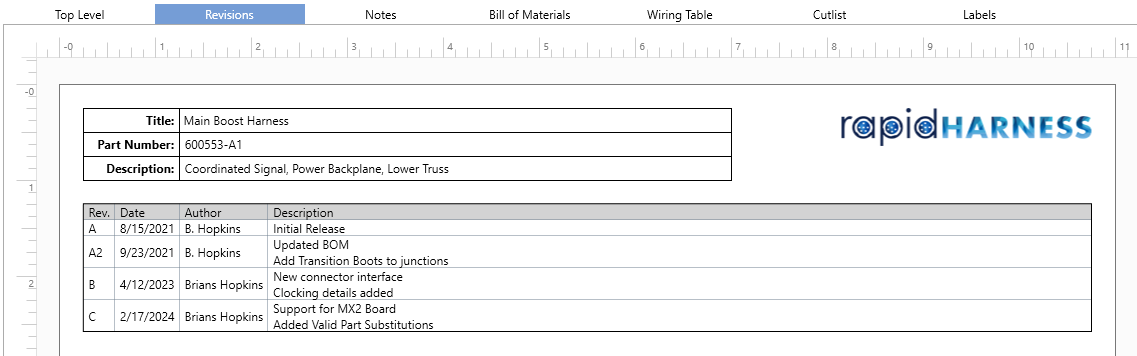

Revision Table Output

Revision Tables are now provided as separate tabular outputs in Harness, System, and Device drawings.

With this, you can free up space on your Top Level drawing while maintaining comprehensive documentation in your PDFs.

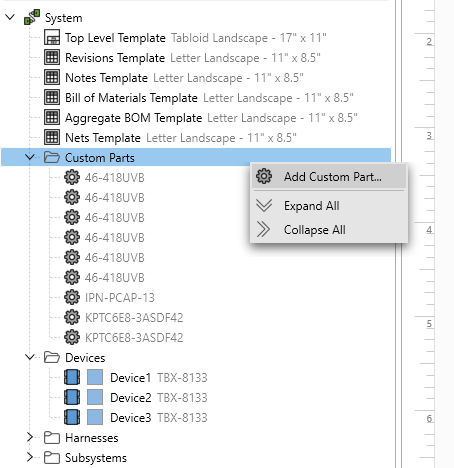

Custom Parts in Systems

You can now add Custom Parts to a System directly.

This will enable you to add any final components as assembled in a larger System, and capture this information in your System BOM.
