Pigtail Connectors Added

You can now add pigtail connectors (pre-wired connectors) to your Library and Harness drawings. This is useful if you have connectors that come with integrated wires/cables to splice or connect directly into your harness design.

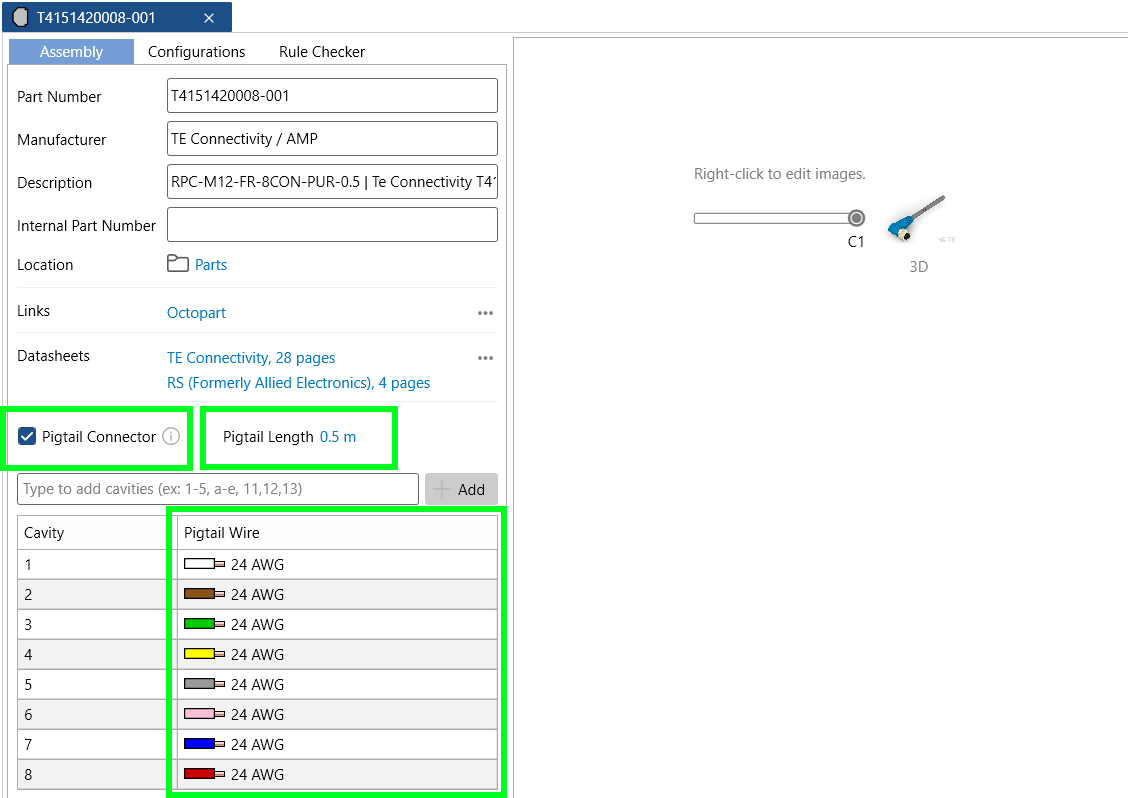

When creating a Connector, simply check the box to add a Pigtail, specify its length, and add color and wire size details to each wire.

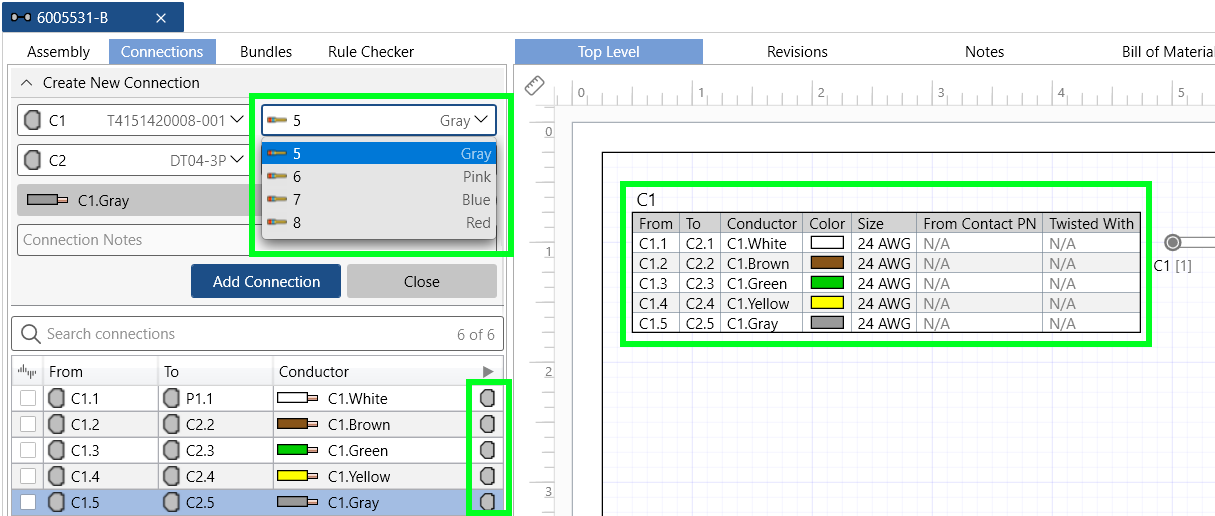

In your Harness, you can then add this Pigtail Connector as any other connector. Your connections tables, wiring tables, and other aspects of the drawing will all incorporate the pigtail wire details in the drawing and all outputs.

Force Version Other Member's Work

Administrators can now Force Version drawings being edited by other members in their Team.

This function is useful if a team member is out on vacation and has left their drawing in an editing state.

Note that if a team member has left your company permanently, you should delete their account to version all of their drawings and remove access to their account.

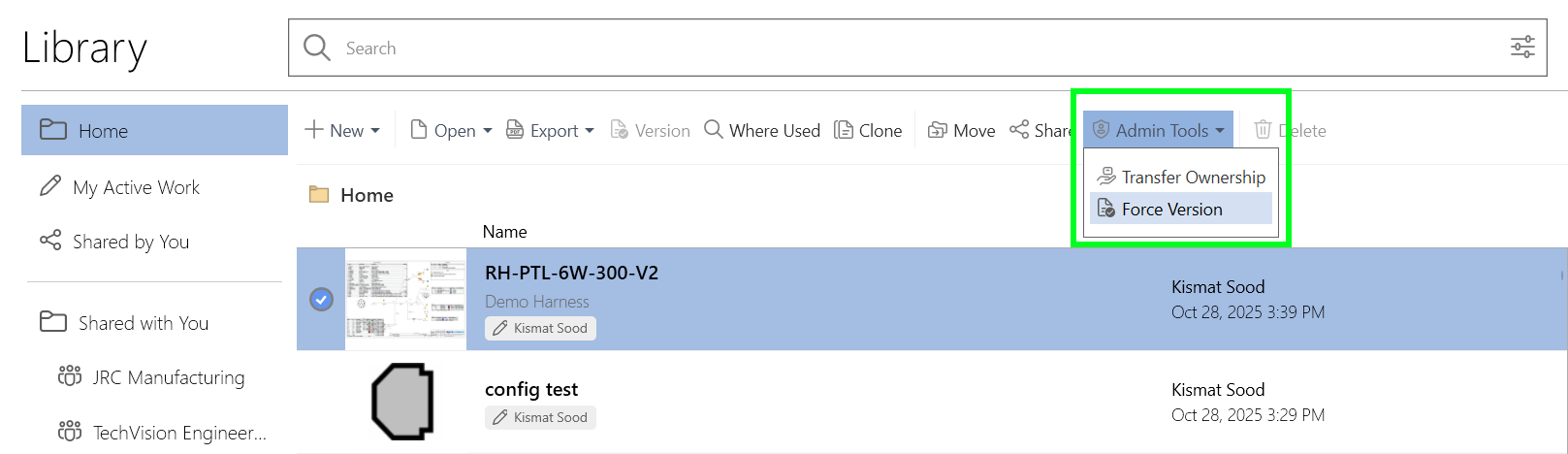

Access via: Admin Tools in Library Ribbon

N/A (Not Applicable) Cells in Tabular Outputs

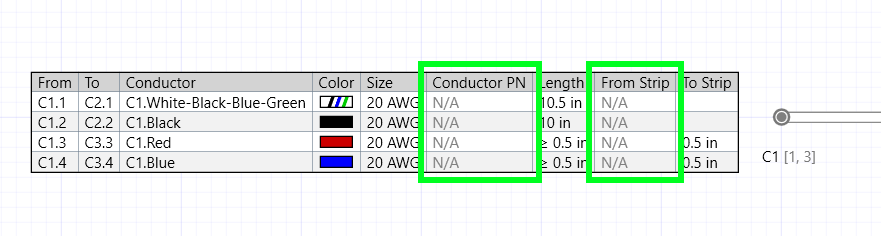

For clarity, N/A now appears in all tables when the information is not applicable. This is included in the drawing outputs and Excel exports.

Some examples of these include:

• Wiring Table
  • Pigtail Connector - From/To Strip Length
  • Pigtail Connector - Twisted With
  • Pigtail Connector - Conductor Part Number, Conductor IPN
  • Pigtail Connector - Contact Part Number, Contact IPN, Wire Seal Part Number, Wire Seal IPN
• Cutlist
  • Pigtail Connector - From/To Strip Length
  • Pigtail Connector - Twisted With, Wire Size
  • Pigtail Connector - From/To Part Number, IPN, Contact Part Number, Contact IPN
• Connection Tables
  • Pigtail Connector - From/To Strip Length
  • Pigtail Connector - Twisted With
  • Pigtail Connector - Conductor Part Number, Conductor IPN
  • Pigtail Connector - Contact Part Number, Contact IPN, Wire Seal Part Number, Wire Seal IPN

Design Usage in Library

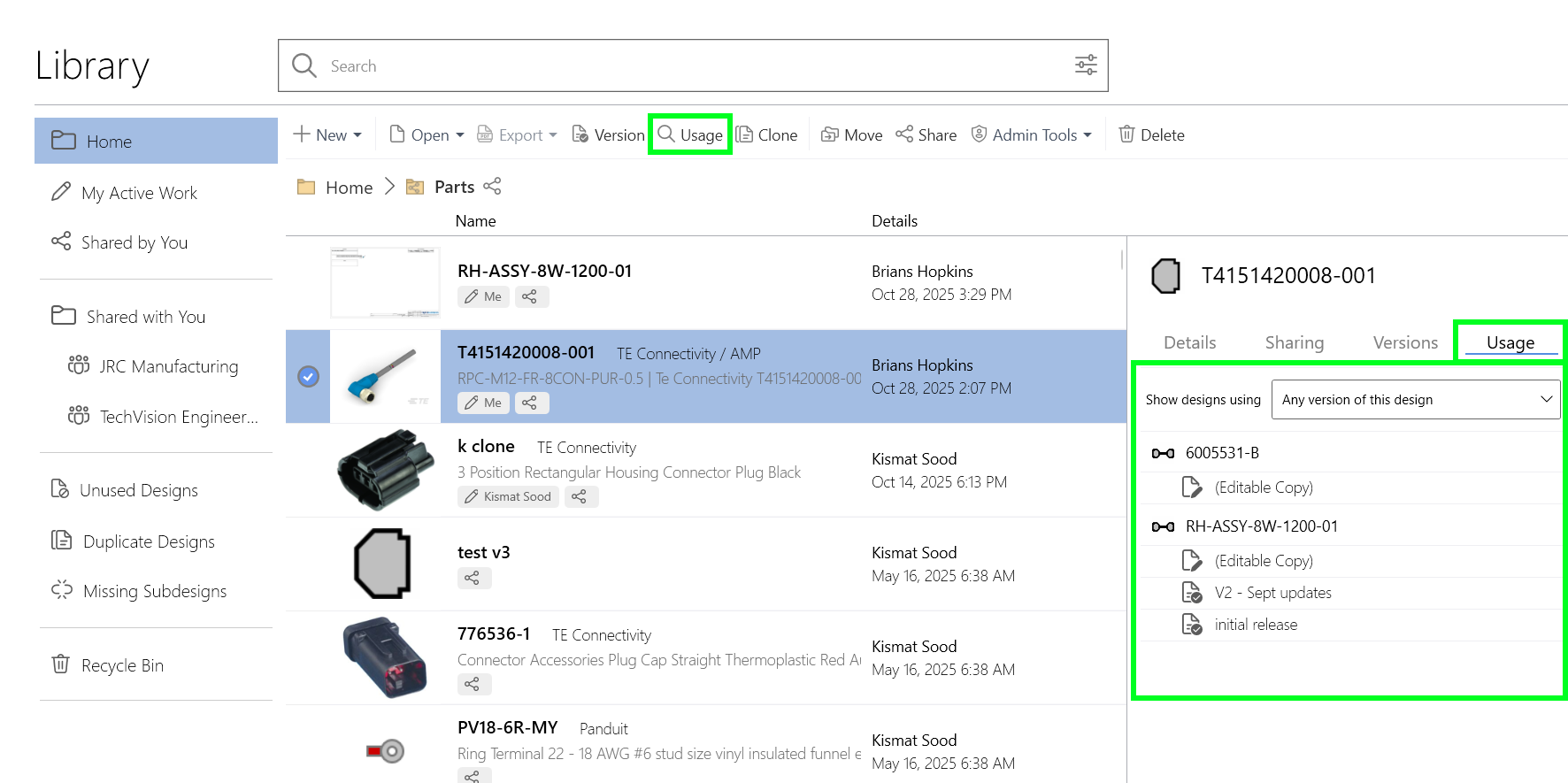

We have moved and simplified the Design Usage (Where-Used) function into the Library directly.

This function can be used to find any other drawings that are referencing a given design (such as finding all places where a given connector is used in your Library).

Access via: Usage pane

Expanded Reference Designator Support

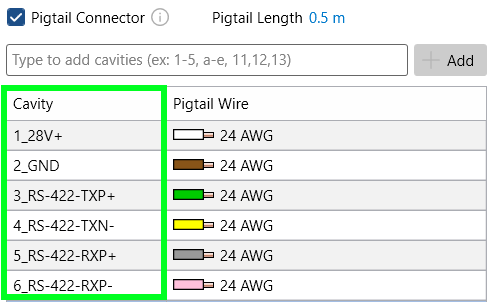

We have added support for additional characters in the names / reference designators of your components and cavities.

Now, you will be able to use any character except for a period.

Wire Color in Assembly

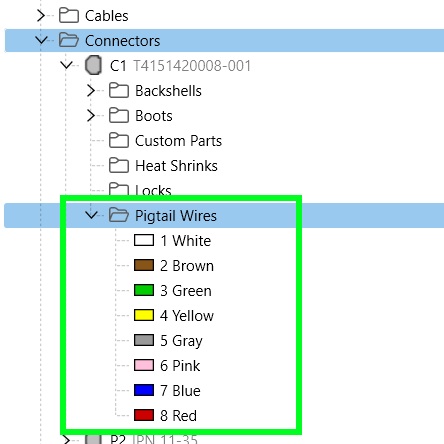

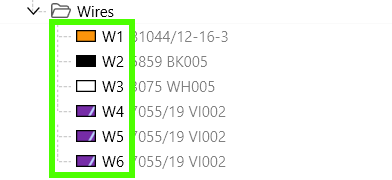

We've added the wire color to design assembly for quick reference when looking up your wires and pigtail wires.

Copy to Clipboard in Assembly

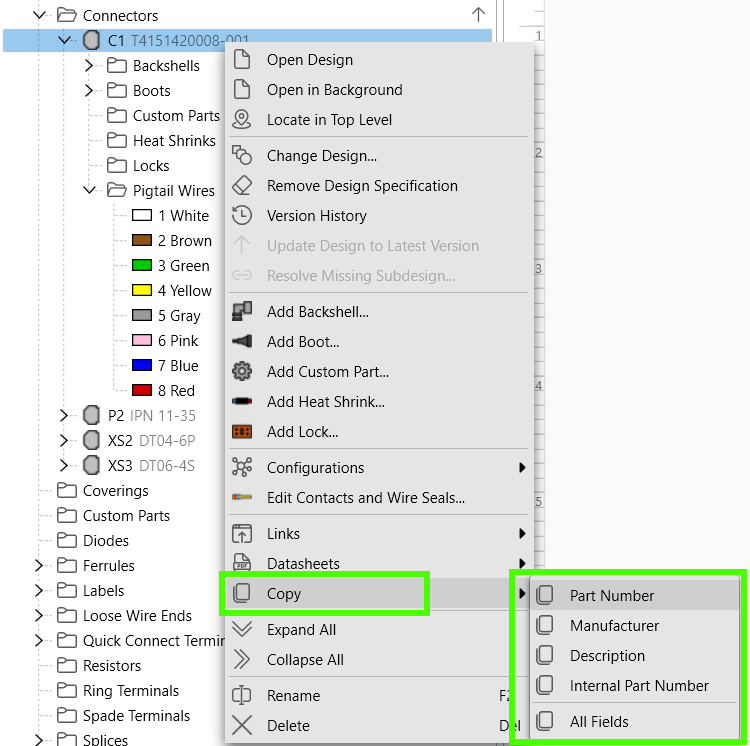

We've added quick Copy to Clipboard functionality to Design Assembly right-click menu.

Expand Connection Details

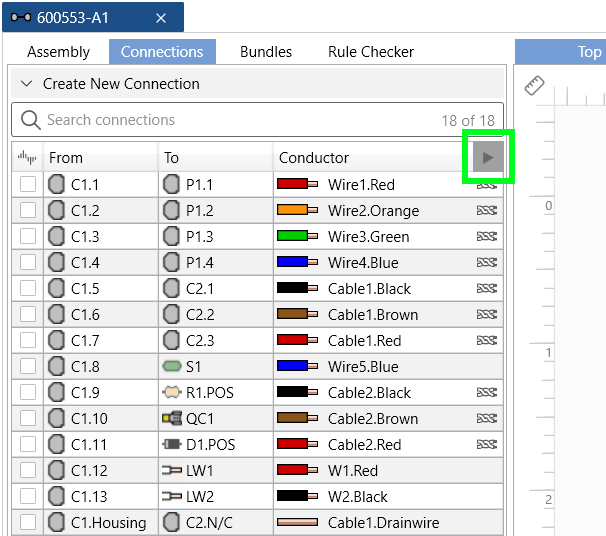

We've added a shortcut to expand your Connections editor to provide more space and display more columns when building your harnesses. You can access this via the button
