Overview
In a System, a Net shows all electrically connected endpoints spanning Devices, Harnesses, and Subsystems.
To create electrical connections across and between Harnesses, and other Subsystems, you will need to create Matings between various endpoints in your System.
Net Properties
| Name |
Description |
| Subsystem (optional) |
If within a Subsystem, the path to the unique System associated with the endpoint |
| Device / Harness |
The name of the Device or Harness associated with the endpoint |
| Endpoint |
The name of the endpoint (Connector.Cavity, Ferrule, Loose Wire End, etc.) |
| Conductor |
The color and name of the harness wire at the endpoint |
| Size |
The size of that wire |
| Signal |
The name of the signal associated with the endpoint (only visible if originating from a Device) |

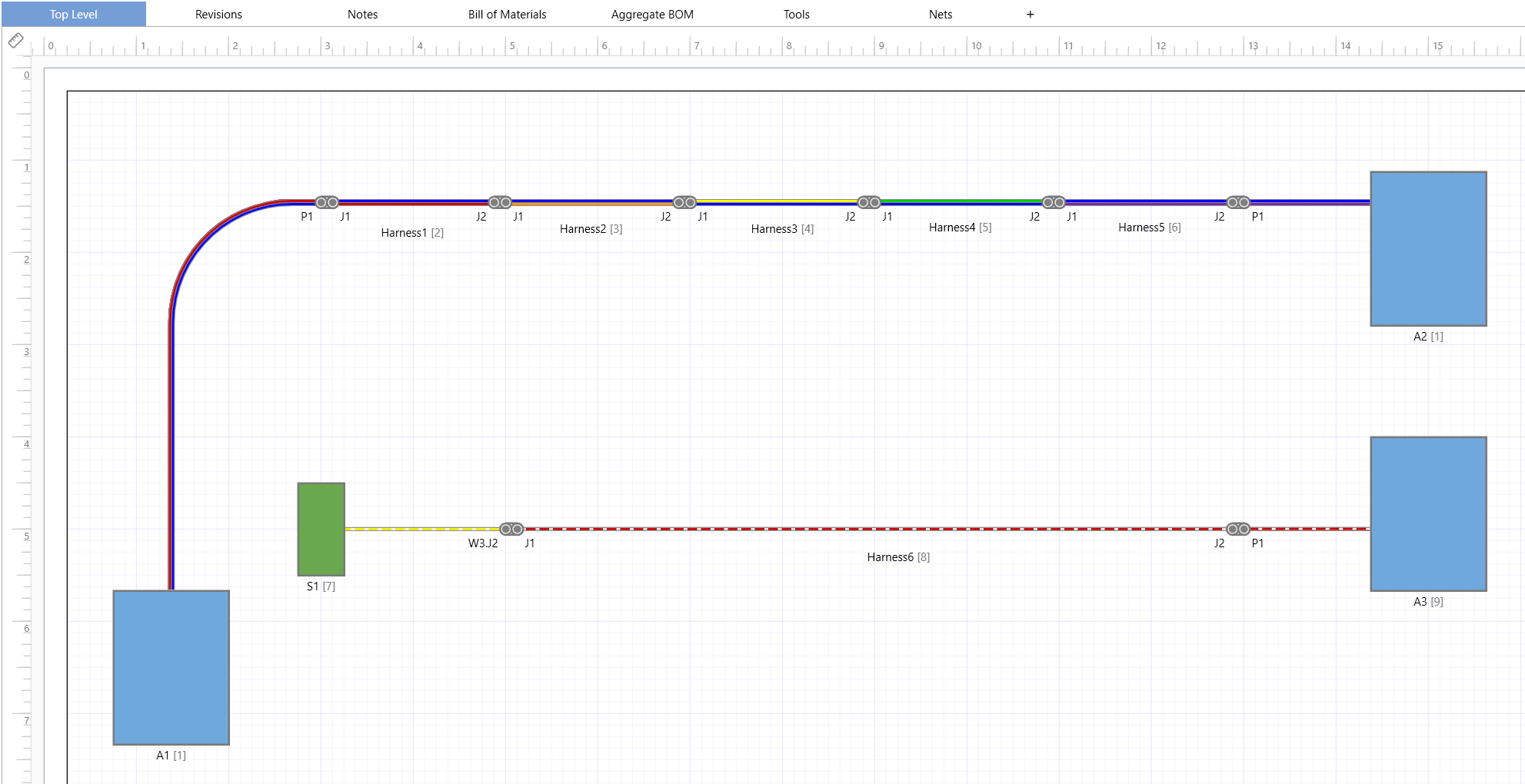

Highlighting a Net
To highlight a Net, click its highlight toggle in the Nets tab. The Net's wires are shown in the harness bundles they run through, in the colors of the wires themselves.
Exporting Nets
Within Systems, you can optionally output system nets when you Export Production Data to Excel. In particular, this will show all electrical nets (as propagated through connector matings in systems) so you can access this information in a tabular form.
