New Features: September 8, 2023

The features announced with this release. Screenshots and menu names are shown as they were at the time. See the Version History for every release.

Bundle Inspection

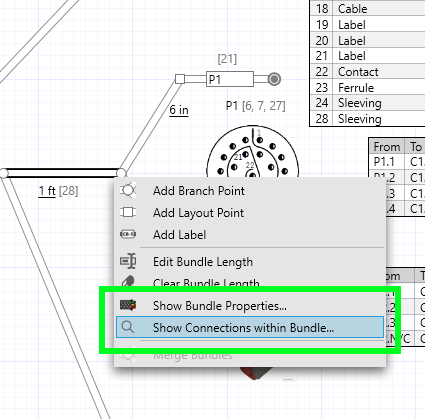

You can now right-click on a bundle in your Harness and select 'Show Connections within Bundle...' to filter your harness connections. This will allow you to determine which cables/wires are routed through each section of your harness!

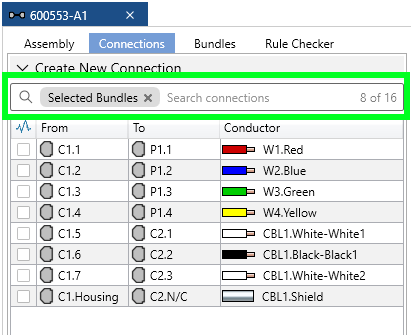

When you select this option, you will see the 'Selected Bundles' filter as shown below. This will filter the list of Connections in your harness to the set of selected Bundles on the Top Level diagram. This filter will actively update as you change your selection on the Top Level drawing.

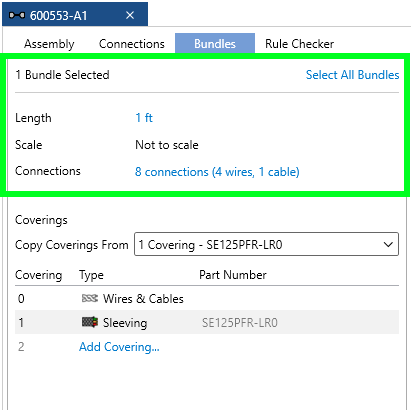

Bundle Details

We replaced the Coverings tab with a new Bundles tab. The Bundles tab will display all of the same information about bundle coverings as before, but also showcase additional properties of the selected bundle itself.

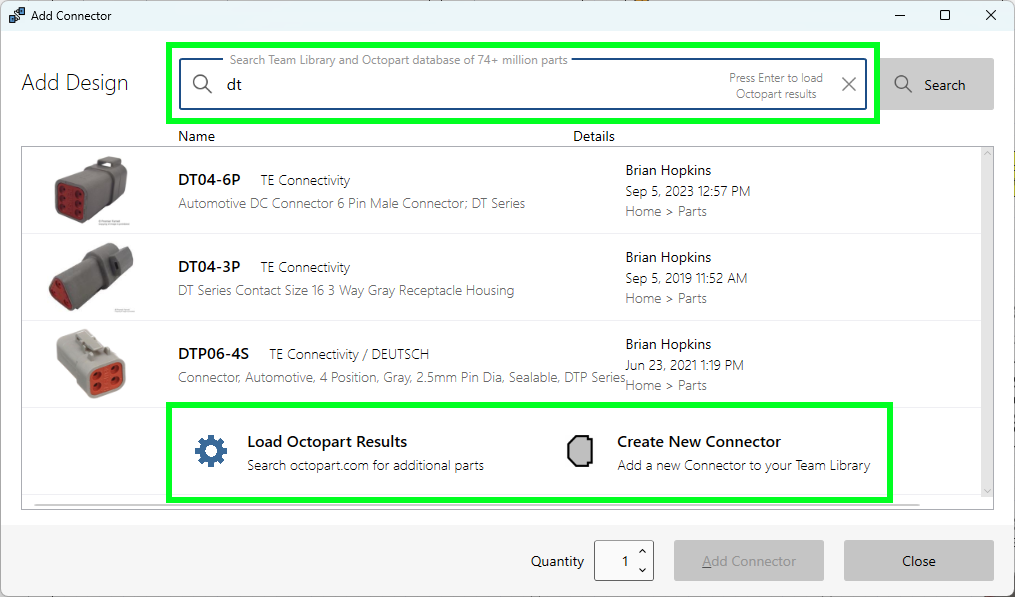

Instant Search

Now when you search for a part in your Library, RapidHarness will instantly filter results based on the text that was typed!

This will help your team search your Library of parts faster and easier. If you don't see the part you need, you can click the 'Load Octopart Results' button at the bottom of the dialog or press the Enter Key to search automatically.

We have also added support for the up/down arrow keys to quickly navigate and select a result.

Library Tools

We've added two new Library Tools to help organize your Team Library-- Unused Designs and Duplicate Designs.

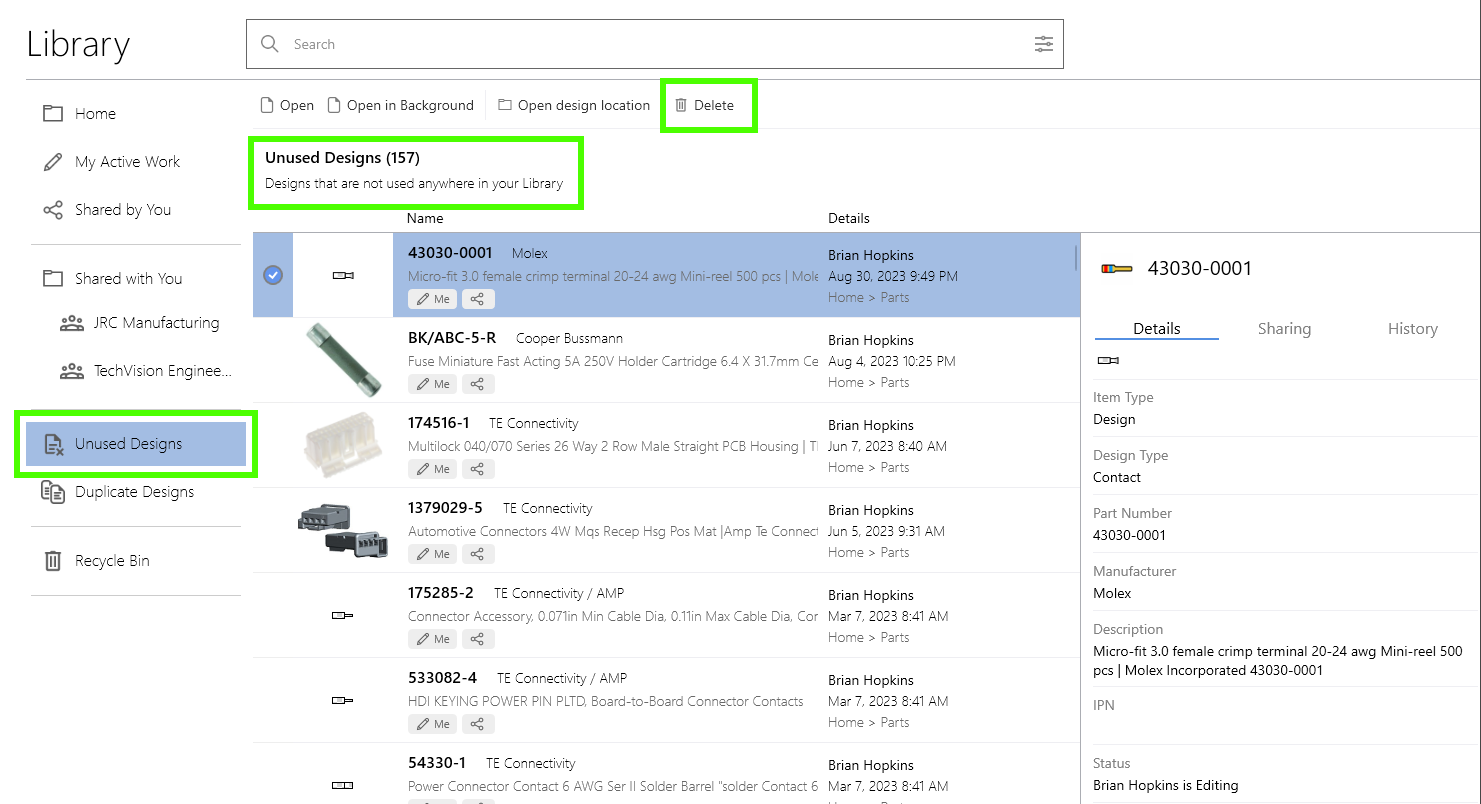

Unused Designs

The Unused Designs Library Tool helps you discover (and delete) any designs in your Library that are not used.

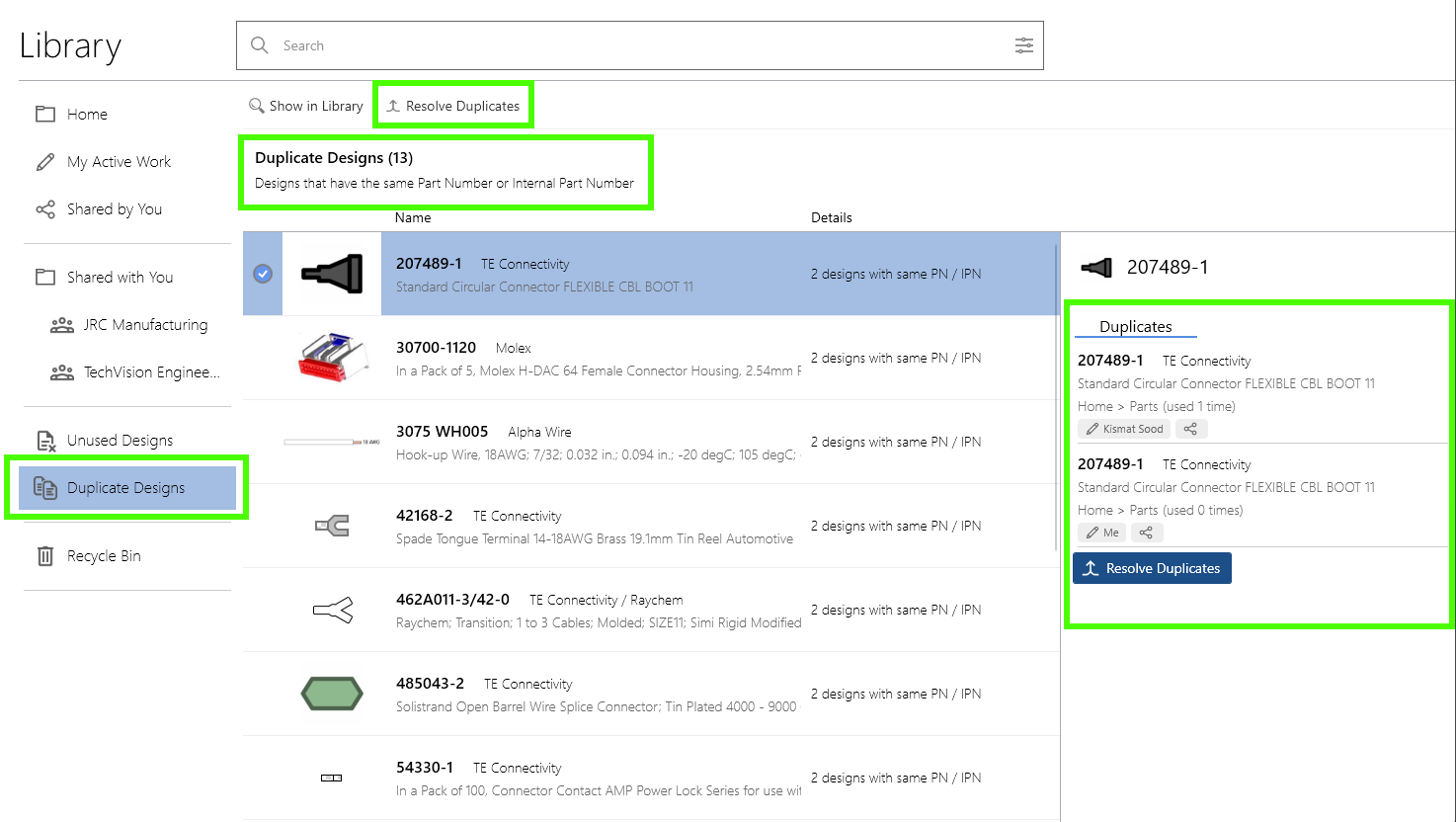

Duplicate Designs

The Duplicate Designs Library tool helps you discover (and delete) duplicate designs with the same Part Number or Internal Part Number.

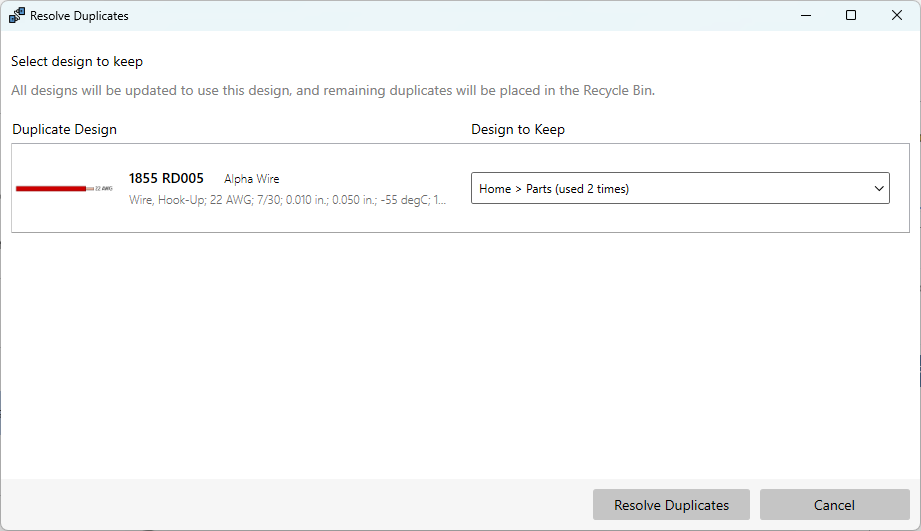

When you select a result and click to Resolve Duplicates, RapidHarness will let you pick which design to keep, automatically version, and update all references to the deleted design.

Additional Updates

Edit Contacts and Wire Seals dialog has an indicator to show which contacts have connections associated with them
You can now right-click and 'View History' directly from Top Level right-click menu as well as design Assembly
'Add Note' shortcut button added to Insert menu
Middle-Click Panning works on versioned drawings
Holding Ctrl while rotating an endpoint (Terminals, Loose Wire Ends, etc.) disables rotation snapping
