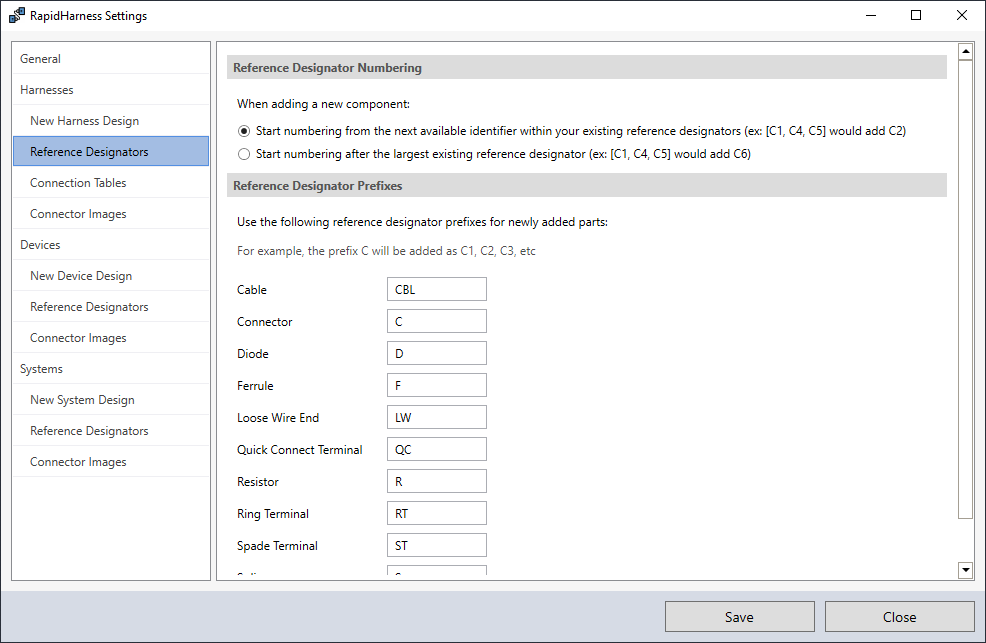

User Settings

We've added User Settings to RapidHarness! You can use these settings to configure various parts of how RapidHarness behaves, including the following items below:

• Default search filters
• New Harness/Device/System templates
• Reference Designator Configurations
• Connection Table Configurations
• Connector Image Configurations

You can access your settings in the File -> Settings menu, or by clicking your name in the top-right corner of RapidHarness!

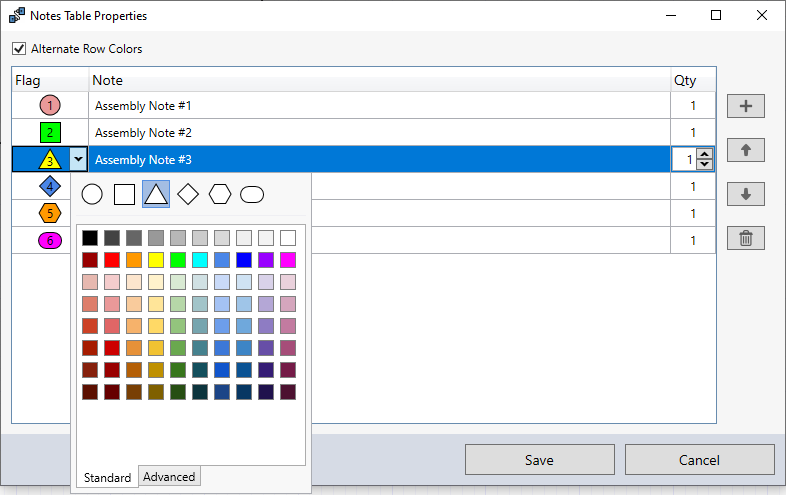

Enhanced Notes Table

We've also updated the Notes Table to allow for more configurable shapes and colors for your note flags!

Now, when you double-click on the Notes Table, you can configure the shape and color of each Note Flag by clicking the dropdown next to the Flag column. Once you save these changes, your flags will also update in your Top Level drawings!

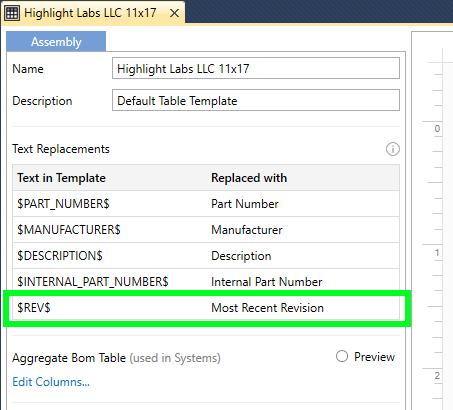

Revision Table Text Replacement

We've now added the text replacement %REV% to Drawing Templates and Table Templates.

When you add this parameter to these templates, it will automatically be replaced in a Harness/System/Device drawing by pulling this information from the newest row in the Revision Table!
