Internal Part Numbers Added

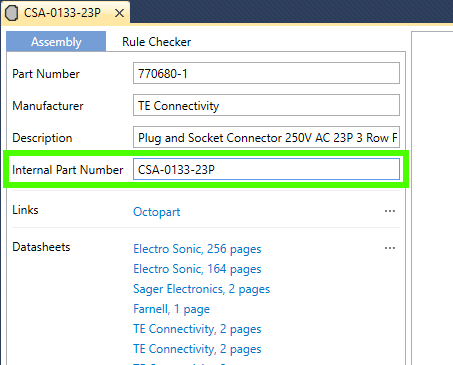

We've added an 'Internal Part Number' field to all design types in RapidHarness (Connectors, Wires, Cables, etc.)

You can use this new property to specify your company's custom part numbers or stock codes for internal use! Internal Part Number is now available when opening and searching your designs, as well as can be added to all outputs including the BOM, Connection Tables, Wiring Tables, Cutlist, and more!

Customizable Table Columns

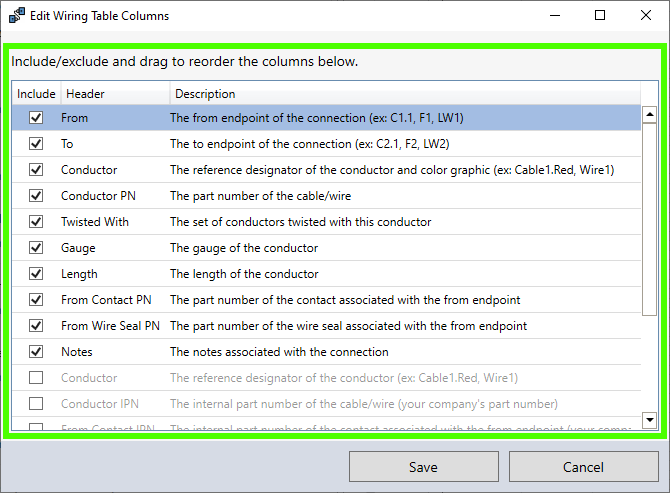

We've also made all table outputs customizable so you can pick which columns to display and drag and drop them to re-order the columns as necessary!

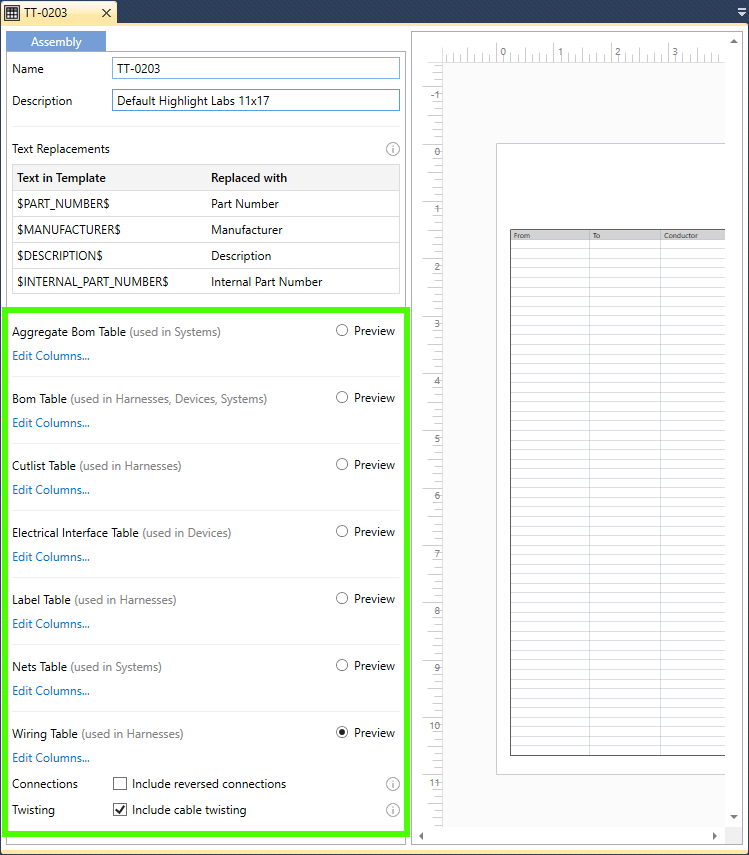

With this, you can configure your Table outputs in the Table Template design as shown below. This includes configurations for the Aggregate Bom Table, Bom Table, Cutlist Table, Electrical Interface Table, Label Table, Nets Table, and Wiring Table.

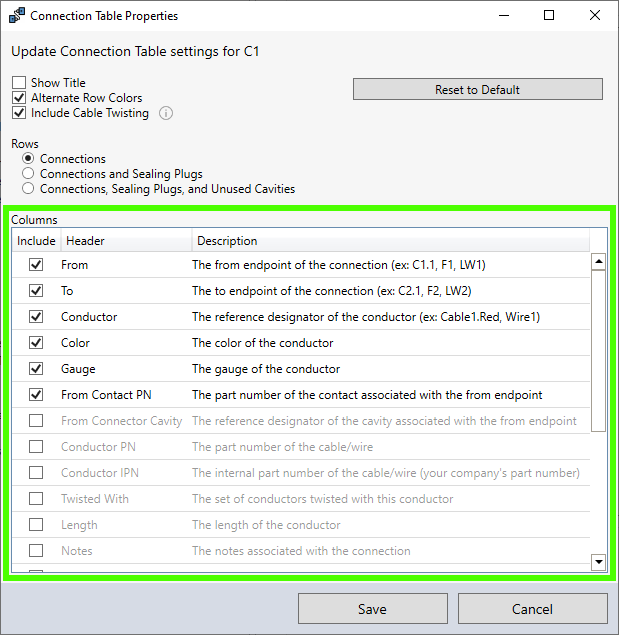

For any Top Level BOM tables and Harness Connection tables, you can edit these by right-clicking on them to select Properties (or double-clicking them) as before.

Connector and Custom Part Image Enhancements

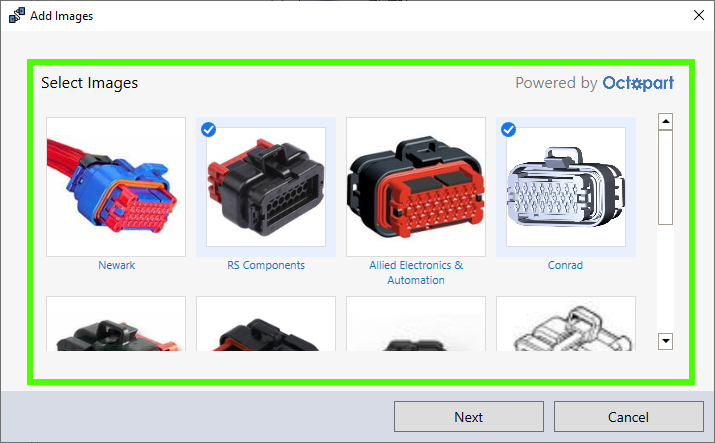

When you add a Connector or Custom Part from Octopart, you can now manage the images included by searching the Octopart database directly! To see this, you can simply right-click and select 'Add Images...' or 'Change Image...' in your Connector or Custom Part design. From here, you will be presented with the option to add an image from your computer, or from the Octopart database.

In addition to this, you can now right-click on an image and save the image to a file, as well as copy/paste connector images.

Other Improvements

Bundle Lengths - Now, when you merge multiple bundles together, RapidHarness will save the length-related information as specified!

Edit Contacts and Wire Seals - We've added the Part Number field to this dialog that will allow you to see connector part numbers alongside their reference designator!
