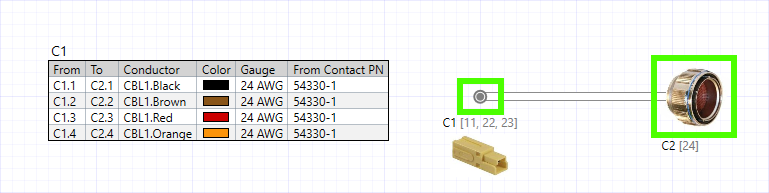

New Connector Look

Harnesses, Systems, and Devices will now show connectors as a simple circular shape and allow you to position Connector Images on top of the built-in graphic. This will better allow for your drawings to be more generic, increase their information density, and support a variety of Connector styles!

With this change, all of your Versioned designs will remain exactly as they were drawn, but any new designs will automatically switch to this new style. To update any versioned designs to the new styles, simply click 'Edit' on the toolbar to create a new Editable Copy of your design.

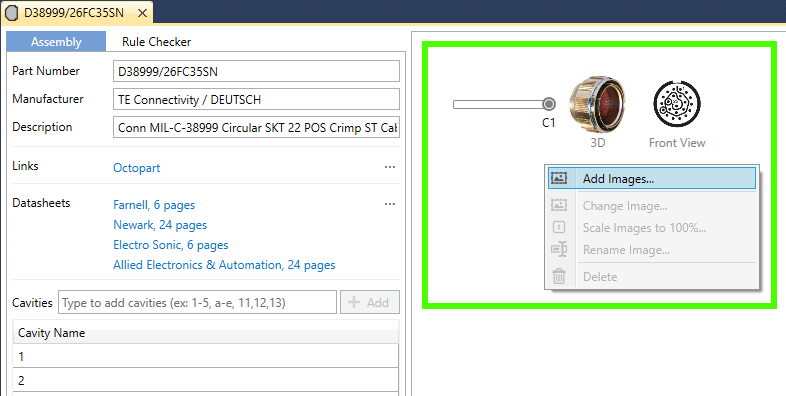

Connectors with Multiple Images

In your Connector designs, you can now add multiple images and specify a description for each image type. When your connectors are added to a Harness, System, or Device, these images will now be visible in all of these designs!

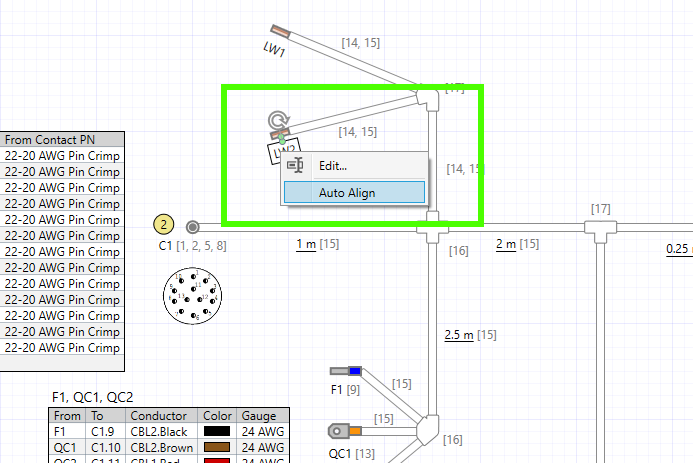

Reference Designator Alignment and Rotation

Reference Designators in Harnesses, Systems, and Devices are now moveable and rotatable. In addition to this, they now have an "Auto-Align" option that places and moves your Reference Designators even when Ferrules, Loose Wire Ends, and various Terminals are moved and rotated!
