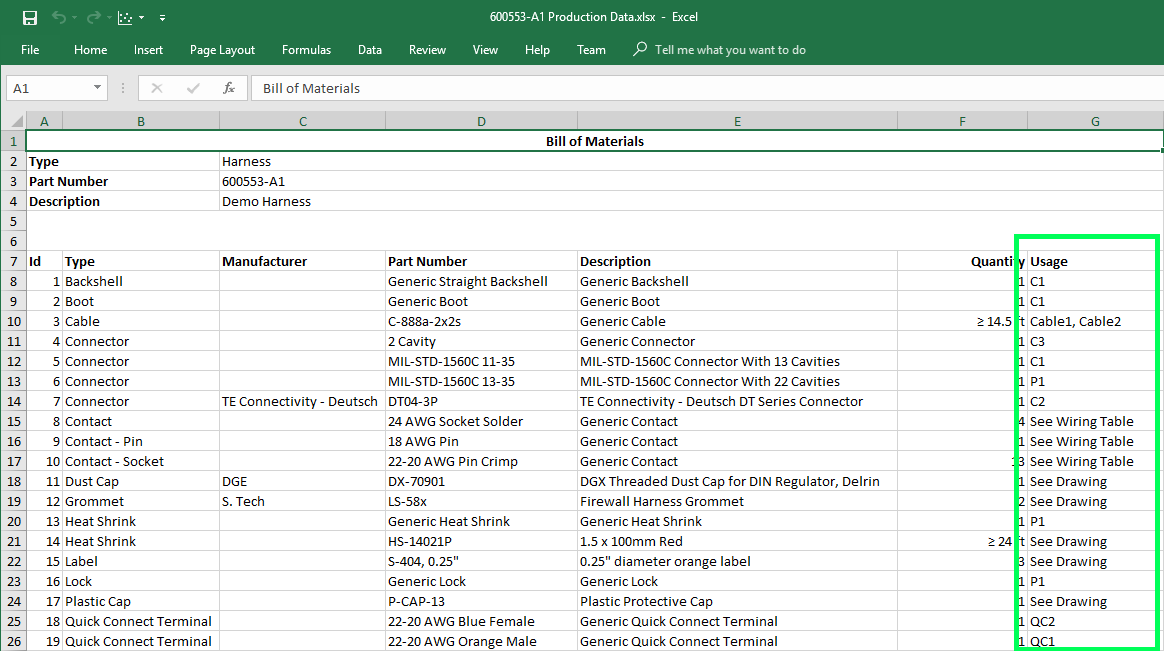

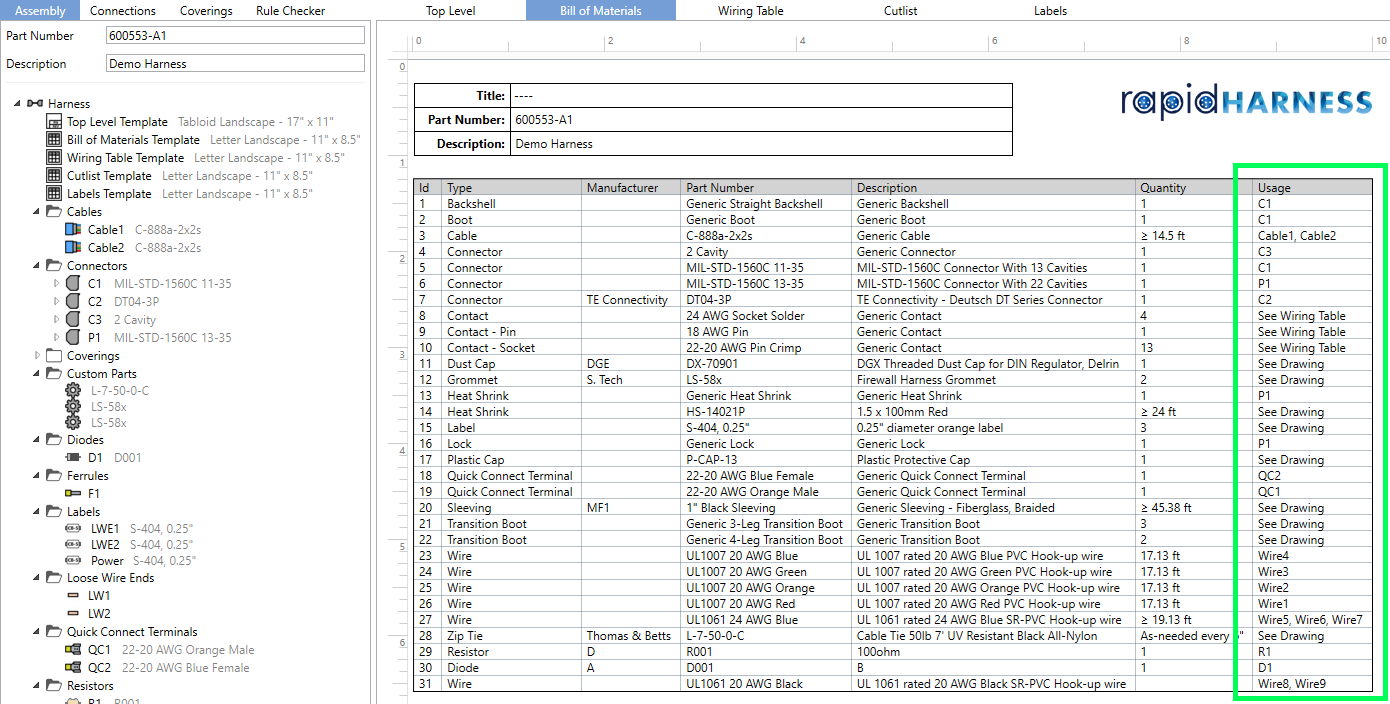

BOM Usage

We've added 'Usage' to the Bill of Materials (BOM). This new column will display the Names (Reference Designators) of each part alongside the shared Part Number and Description information. You can see this below in the 'Bill of Materials' output, as well as the Exported Production Data (in Excel).

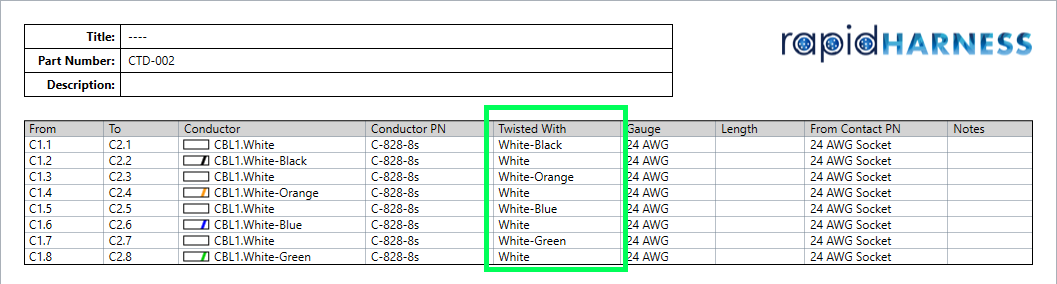

Cable Twisting Information

You can now select to display the Cable Twisting information in your Harness designs. If selected, you will see how cable wires are twisted together (as defined by their Cable designs) in the 'Twisted With' column. This setting is configurable for each Connection Table in your Harness, as well as in your Table Template designs for the Wiring Table.

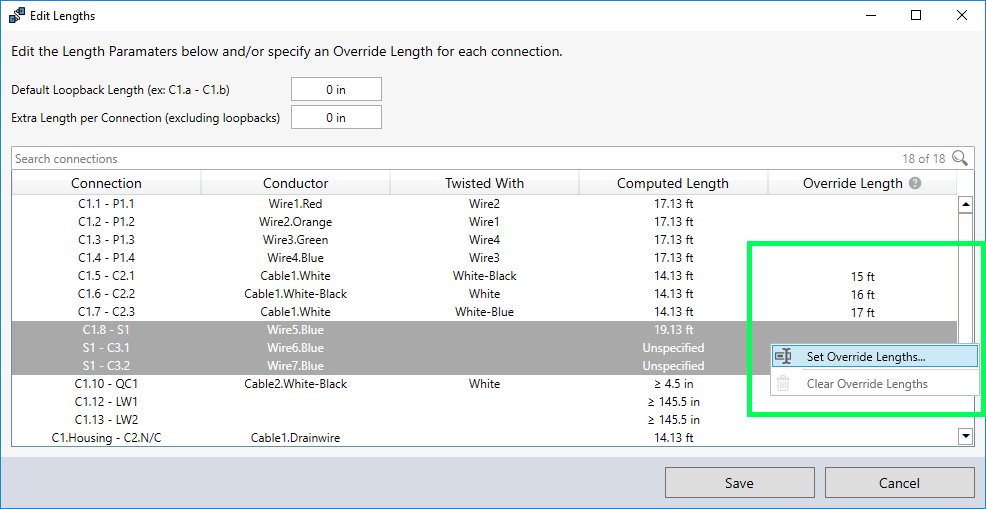

Individually Overridable Cable Lengths

Within the 'Edit Lengths' dialog, you can now override each cable wires' length individually. If you plan to override multiple lengths simultaneously, you can still multi-select each row (using the Ctrl key), right click, and select 'Set Override Lengths...'.

System Notes Table and Revision Table

In System designs, you can now add the Notes Table and Revision Table as with Harnesses. To enable these options, simply right click on the System Top Level and select the appropriate option.

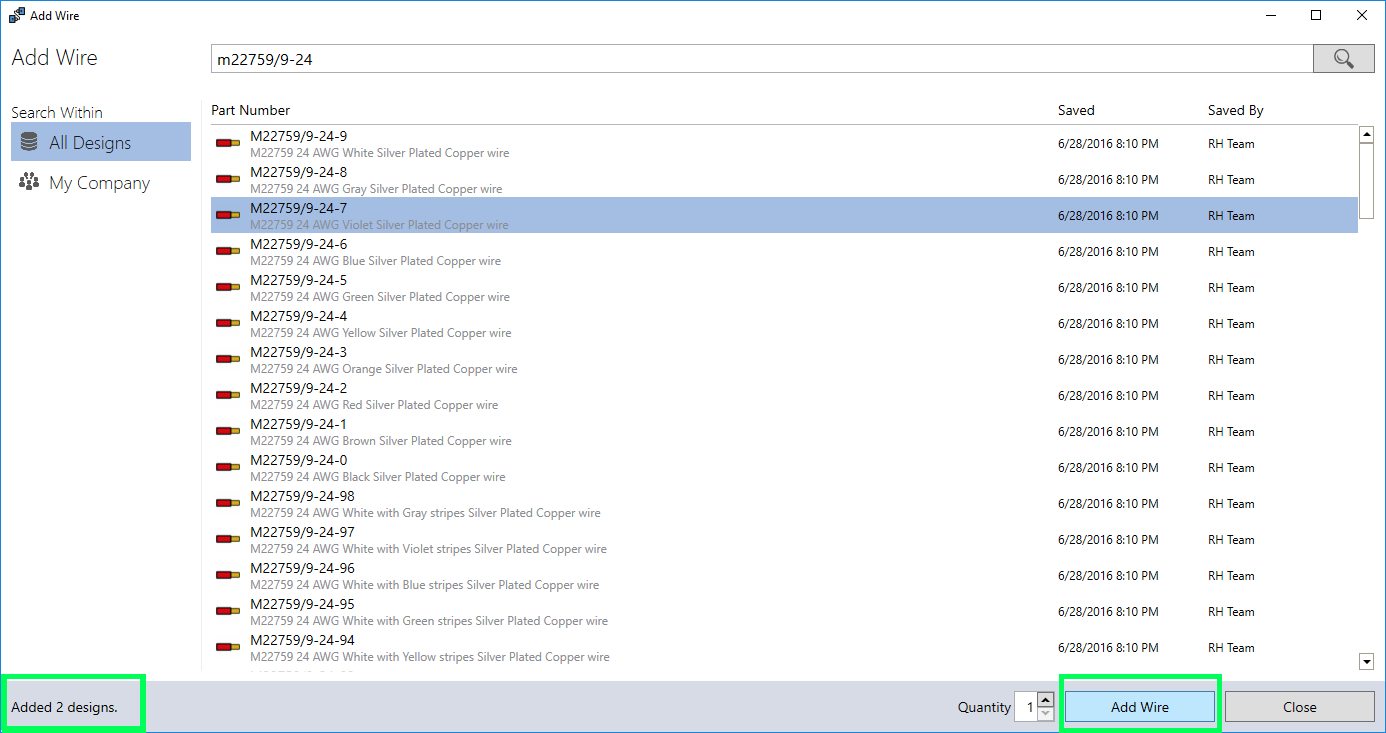

Add Multiple Designs Enhancement

We've added a shortcut in the Add Design dialog to allow multiple items added without closing the dialog (if you search for a component type, and add multiple similar parts). To access this, you can press the 'Add' button at the bottom, which will add the respective component without closing the dialog. Note that double clicking on the row will automatically add and close the dialog as before.
