New Features: February 1, 2018

The features announced with this release. Screenshots and menu names are shown as they were at the time. See the Version History for every release.

Save to PDF

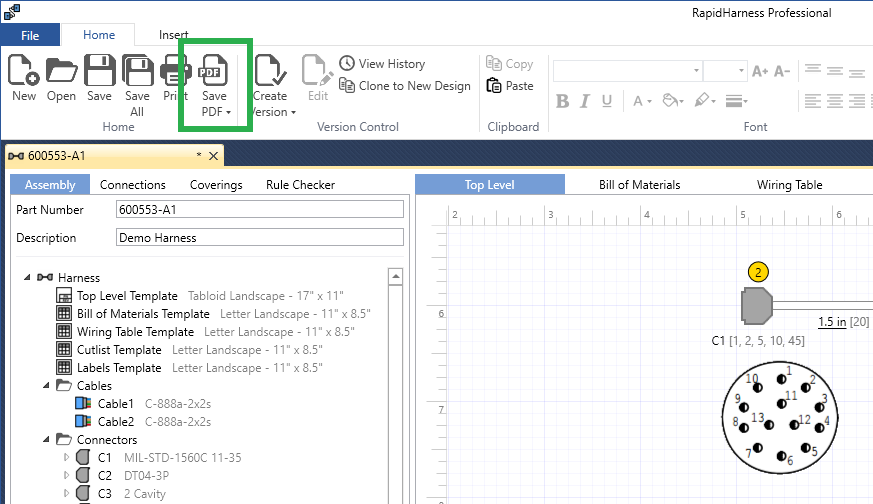

You can now save your Harness drawings directly to PDF! To do this, all you need to do is press the 'Save PDF' button in the toolbar. This will create one document with all of your harness information.

Save to PDF

PDF Settings

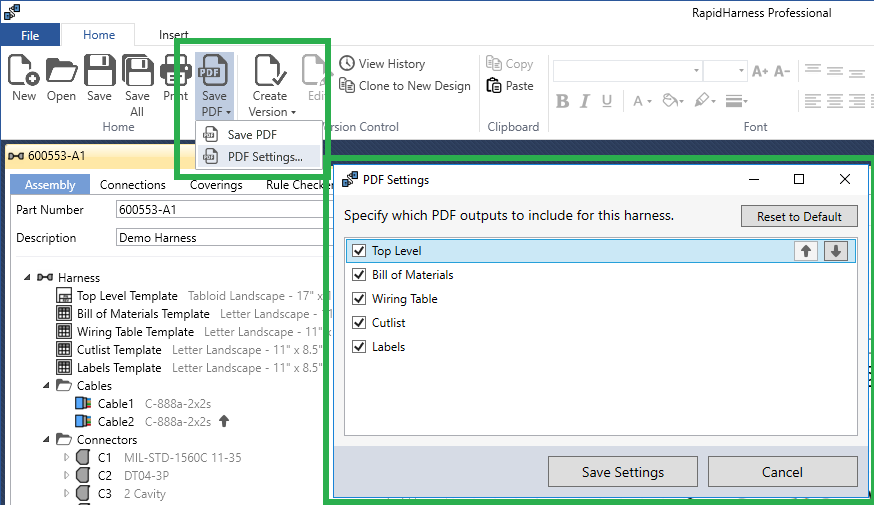

In addition to this, you can pick and order which outputs to export, including the Top Level, Bill of Materials, Wiring Table, Cutlist, and Labels. These settings will be saved with each harness you create.

PDF Settings

New Cutlist and Labels Tabs

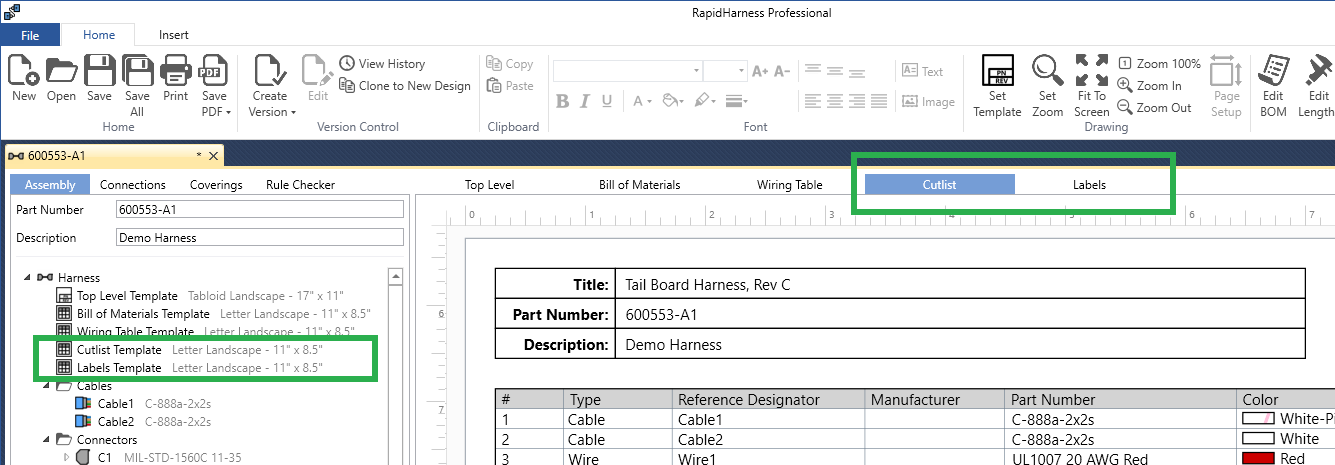

Lastly, all harness designs will now have two additional tabs, for the Cutlist and Labels. Each of these documents can be used to preview your outputs, as well as specify their drawing templates.

New Cutlist and Labels Tabs
