Transition Boots

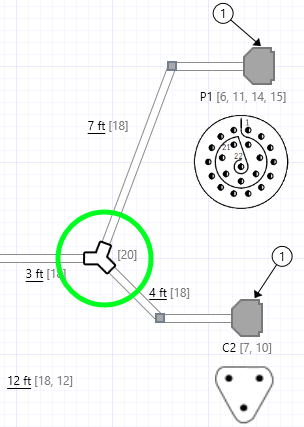

You can now add Transition Boots to your harness bundle junctions (where Branch Points are). These will show up in your Top Level harness drawings, and in your harness Bill of Materials.

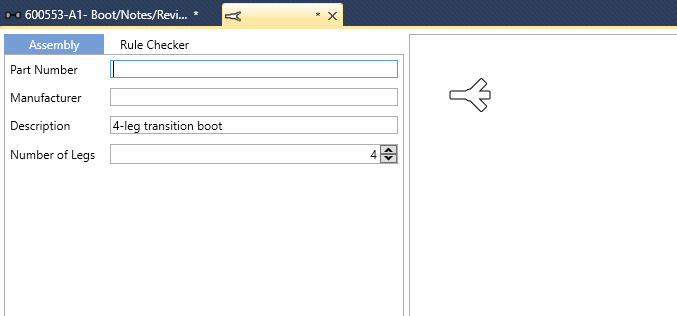

You can also add a new Transition Boot design to your library from the New Design page. Here you will be able to specify a Part Number, Manufacturer, Description, and Number of Legs for the new transition boot.

Notes Table

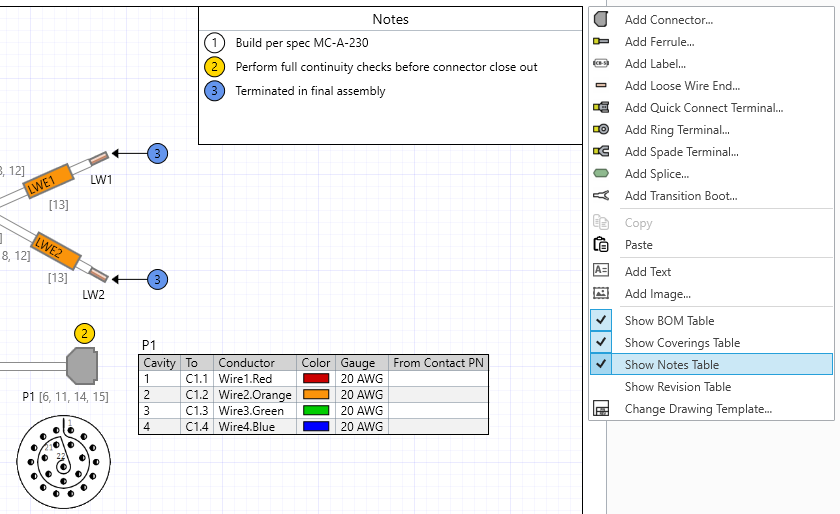

We’ve also added the ability to add a Notes Table (with Flags / Leader Lines) to your harness Top Level drawings. To add this to your harness, you can right click anywhere in the background of your harness and check “Show Notes Table”.

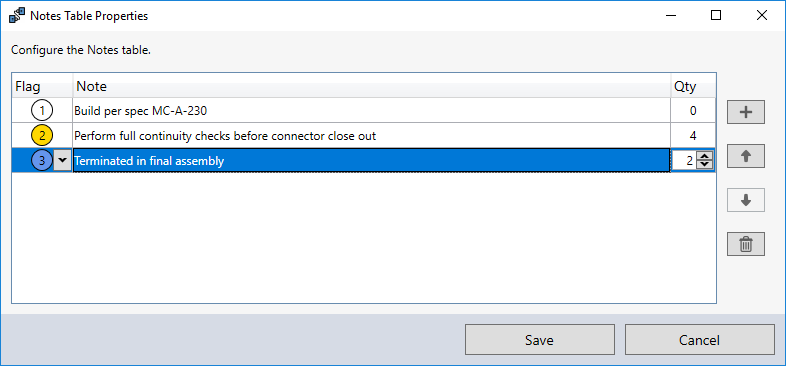

From here, you can edit your notes by double clicking on the Notes Table. In this dialog, you can add a new multi-line Note, change its Flag color, and specify the quantity of Flags / Leader Lines to show in your Top Level drawing.

When one or more Leader Lines are added, you can move them around your harness and optionally hide their arrows if you simply want the Flag without a tail.

Revision Table

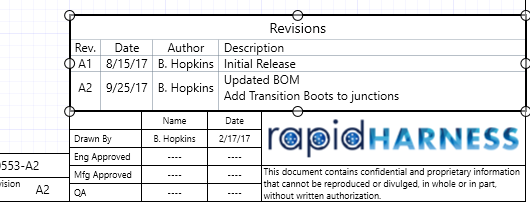

You can also now add a Revision Table to track major change to your harness drawings. Like the Notes Table, you can turn this feature on by checking off “Show Revision Table” in the right click menu of your harness.

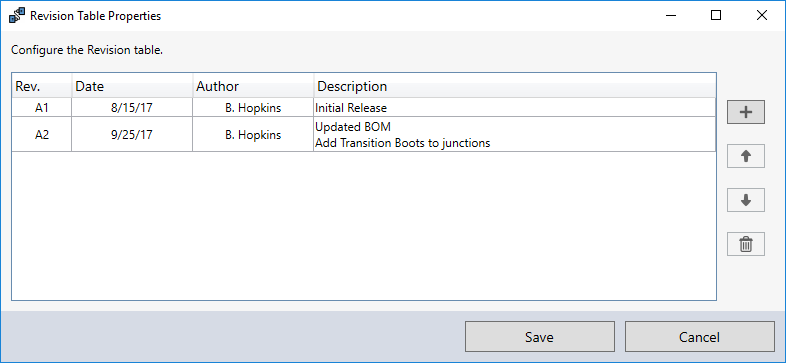

To edit the Revision Table properties, simply double click on the Revision Table to edit the Revision, Date, Author, and Description.

Double Click to Edit Tables

Lastly, you can now double click on any of the tables in your Harness Top Level drawing to quickly edit their properties. This shortcut will work on the BOM Table, Notes Table, Revision Table, and all Connection Tables.
