Editing Wire & Cable Lengths

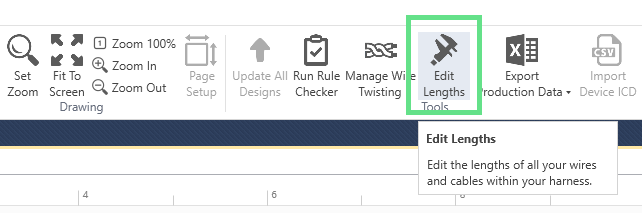

You can now manually edit and override all the computed lengths for each connection inside your harness! To edit your lengths, you simply press the Edit Lengths button in the top of the ribbon.

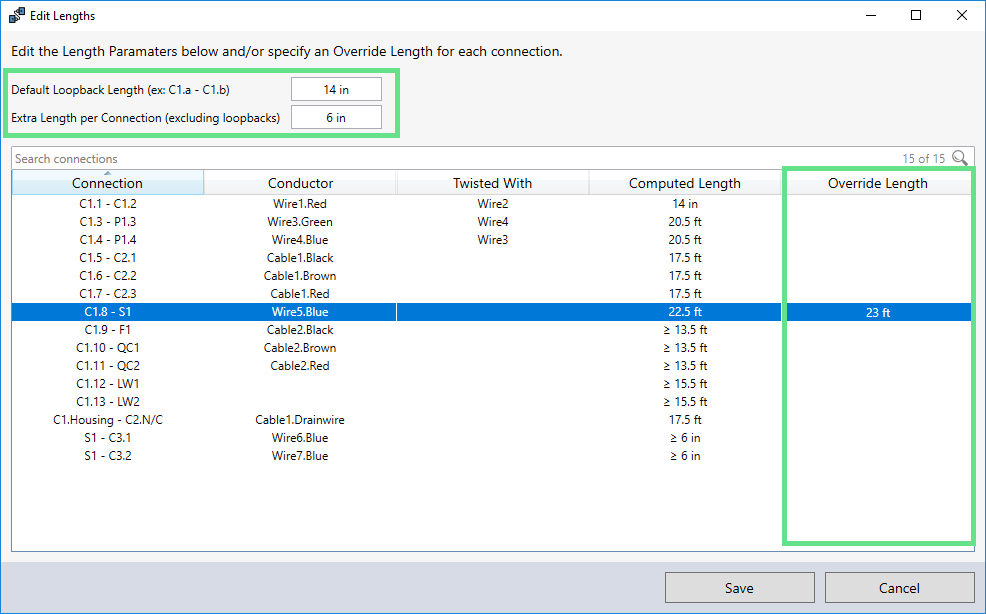

In this dialog, you can see three new ways to adjust the lengths within your harnesses.
- You can now add a Default Loopback Length for all connections that connect From and To the same connector (such as connection C1.1 - C1.2).
- You can give all of your other connections (excluding Loopbacks) an Extra Length that is added to their total computed length.
- If you prefer to manually set a connection length to override its computed length, you can specify a new length in the Override Length column. In addition, you can select multiple connections at a time, and edit them together using the right click menu.
Exporting Production Data

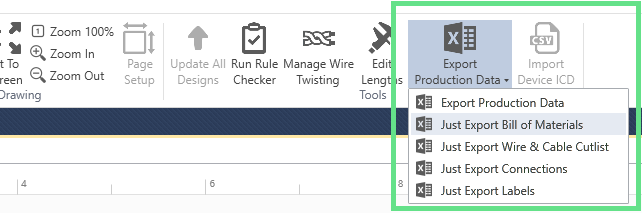

Within your harness, you can now export all tabular production data to a single Excel workbook! This new feature is located at the top of the ribbon, and still allows you to generate individual documents if you prefer.

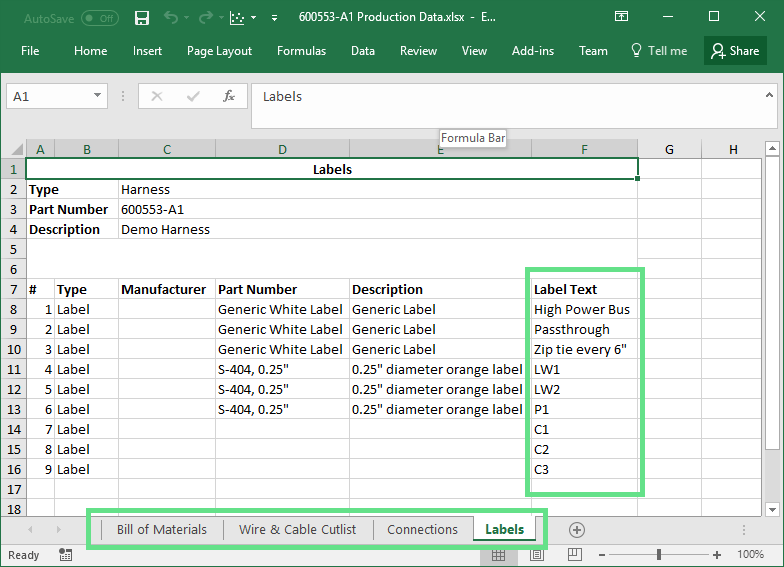

When you export your production data, the Excel workbook will contain your Bill of Materials, Wire & Cable Cutlist, Connections List, and Newly Added Labels. The Labels tab will show you all individual Labels added to your harness, including their part information and Text to display. This information can then be used to send your label texts to a printer.
Harness Bill of Materials Update

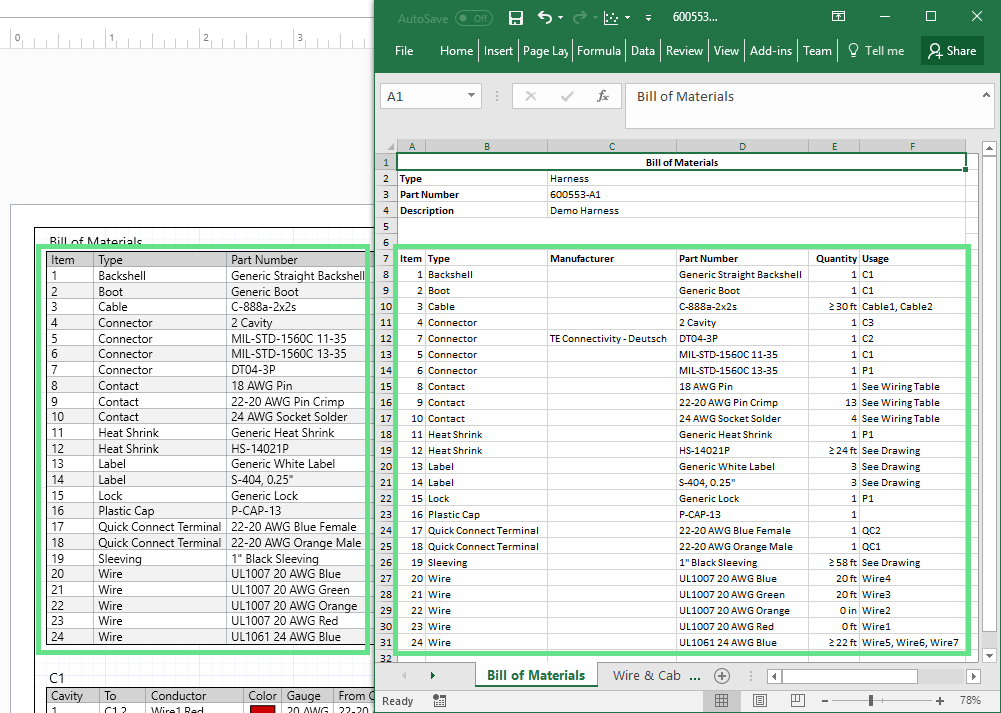

Additionally, when you export your harness Bill of Materials, the excel data will match your Top Level drawing exactly. As such, you will now see the same Bill of Materials Item Number as shown on your drawings.
System Bill of Materials
Now, when designing your systems, you can export a Bill of Materials to Excel. The bill of materials generated will contain multiple tabs for the various Systems and Harnesses within your system identified by each components' part number. Below, you can see an example bill of materials including the use of Devices, Harnesses, and Subsystems.
