New Top Level Connection Tables

To facilitate production, we’ve added Connection Tables with each endpoint within your Harness Top Level. With these tables, you can quickly see every connection associated with each Connector, Splice, Ferrule, Loose Wire End, and Quick Connection / Ring / Spade Terminal.

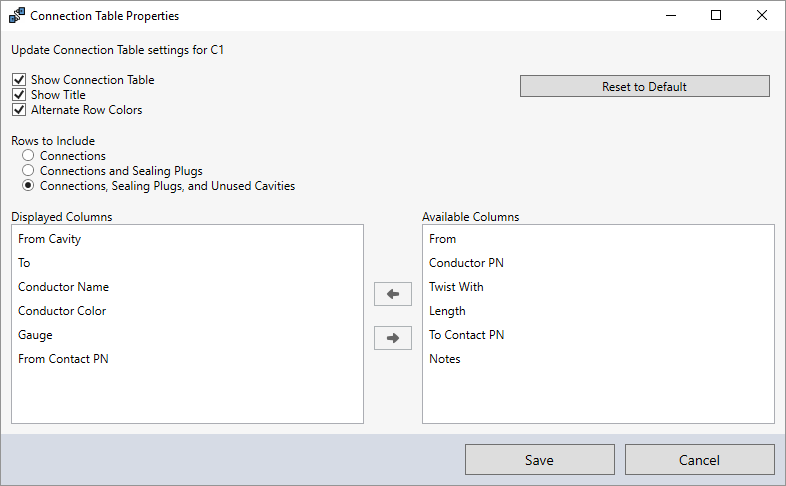

These Connection Tables have a variety of options, and also let you configure which columns and the order of columns at each endpoint. To configure the connection table, simply select one (or more) connectors, and choose ‘Connection Table Properties…’

Configurable Top Level Bill of Materials (BOM) Table

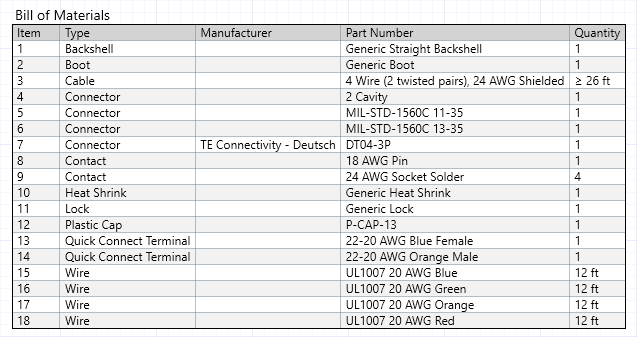

We’ve also added several new features so you can now configure the Bill of Materials table in your Harness Top Level - including the ability to add Manufacturer and Quantity.

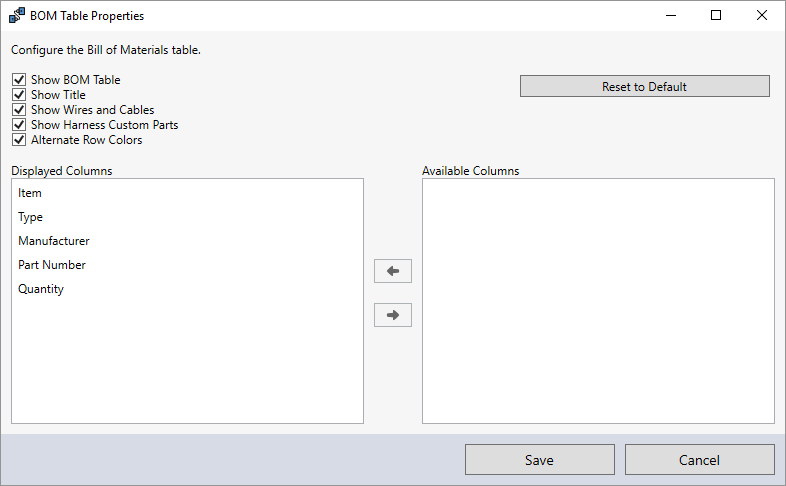

To configure your BOM table, you can right click on the table or anywhere in your harness, and select ‘BOM Table Properties...’ Below you can see the available configuration options for the new BOM Table.
