New Features: September 20, 2016

The features announced with this release. Screenshots and menu names are shown as they were at the time. See the Version History for every release.

Connector Front View

We've added pictures to connectors to help distinguish your harness schematics and aid manufacturing. Now, when you add a connector to your harness, it will automatically show up with its Front View image. Within your harness, you can select these images, move, and resize them to best fit your design. If you prefer not to see a specific image, you can simply right click on the image and select to hide this view.

Updating Your Connectors

We’ve already updated the connectors in the RapidHarness library to have Front View images. To add a Front View to custom connectors in your library, you can simply edit your connector, click to add the image, and drag to give it a default size.

Updating Your Harnesses

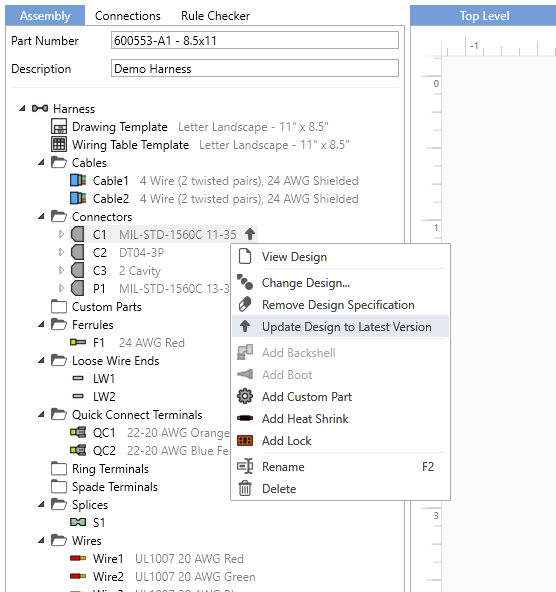

Once you save your connector, you can then update any harnesses using this design through the design assembly.

Updating Your Harnesses
