Wiring Table - Now Showing Conductor Colors

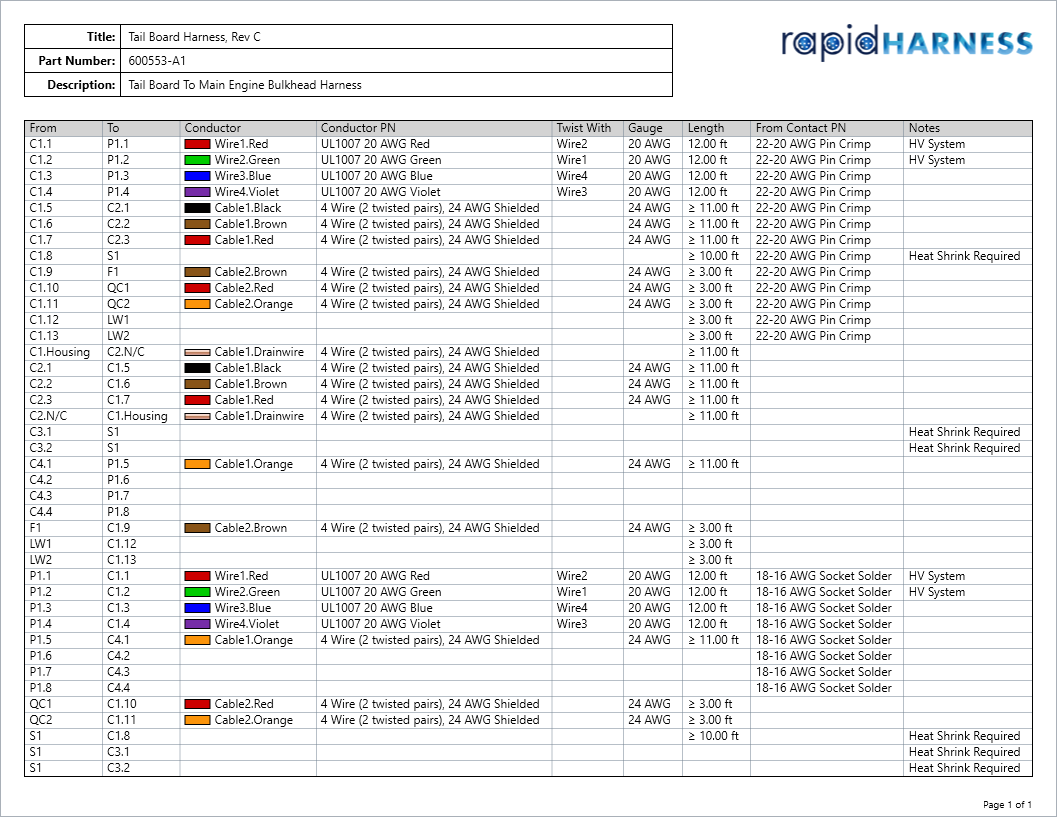

In your harness wiring tables, you can now choose to see the colors of your wires and cables! Check out the ‘Conductor’ column below.

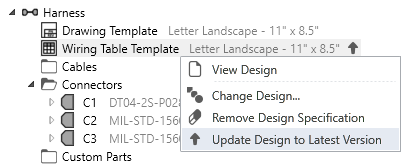

If you are using a default template, you can see this feature by updating to the latest version of the template. To do so, go to your harness assembly, select your Wiring Table Template, right click, and update it to the latest version as shown below.

If you have built any custom wiring table templates of your own, select the option ‘Show Conductor Color’ in the left and save the template. You can now update your harnesses to use this new version!

Print with Highlighting

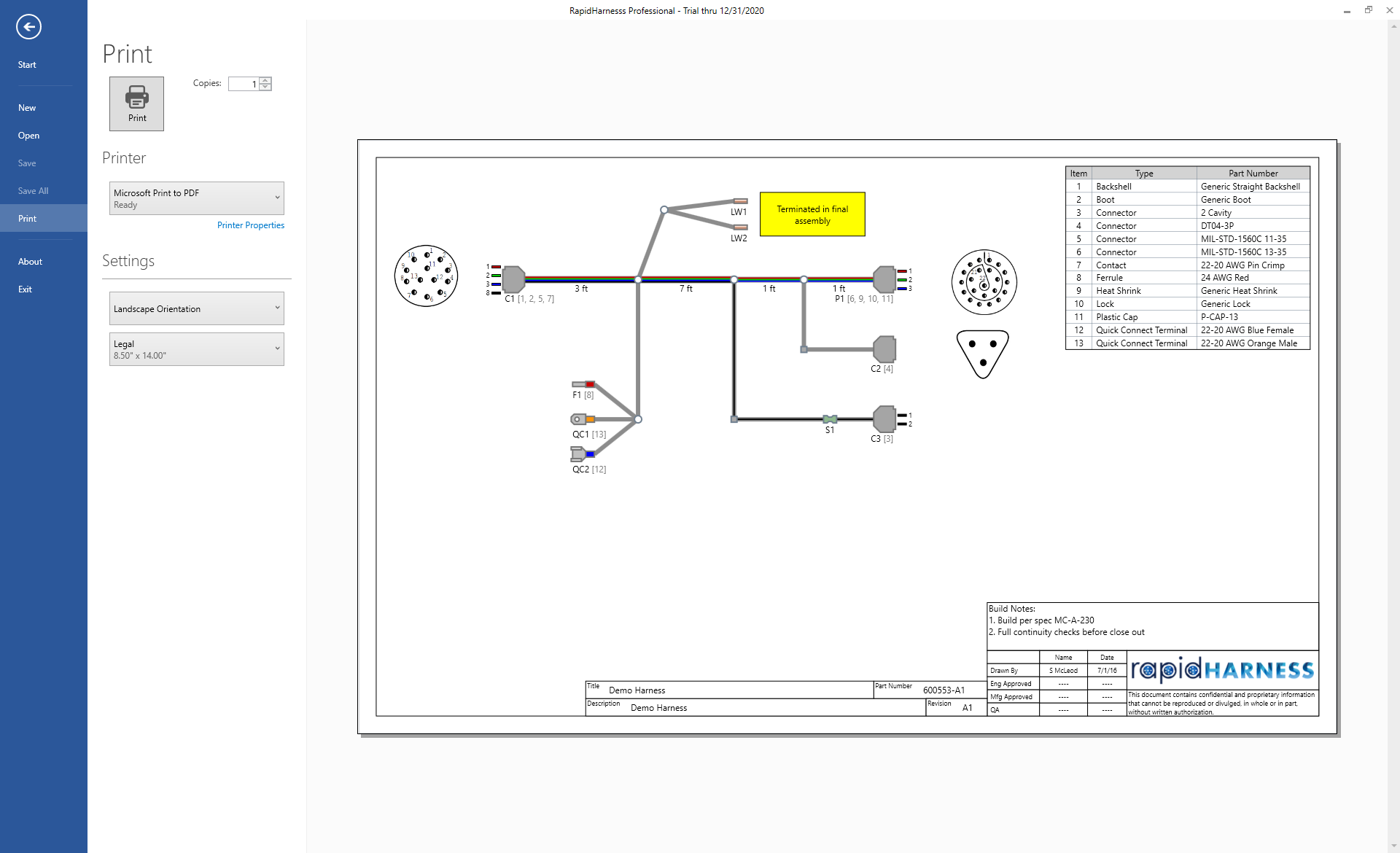

With the latest version, you can now print your Harnesses or Systems with your connections and signals highlighted! As requested by users, this can be used for printing smaller designs, functional units, and subsystems. To try this out, simply highlight some items in your harness or system and print your Top Level.

Export to Excel

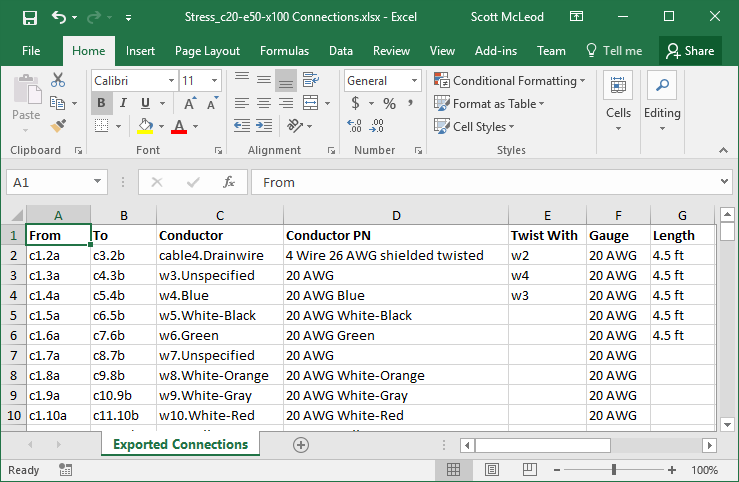

Need more customization to the wiring table? You can now export your harness connections directly to Excel to edit and manipulate your harness outputs manually! This new function is located in the Tools menu of the ribbon.

Update Notification

When using RapidHarness, you can now ensure that you’re running the latest version by looking in the top-right of the application. If there is an update available to install, you simply press the button ‘Update Available’ and RapidHarness will update itself and re-launch!
